1. Purpose

Two applications share one codebase. The Product Application is a grocery shop. The Plumbing Application, Service Agent, is a booking platform. The second was built from the first.

This document shows how to run either one, and how to build a third the same way. Every command was run against the live servers.

Wherever a command appears, the line under it says what you should see when it worked. If you see something else, that is where to stop and look.

Product: https://marketz.smartzees.com Plumbing: https://servicez.smartzees.com

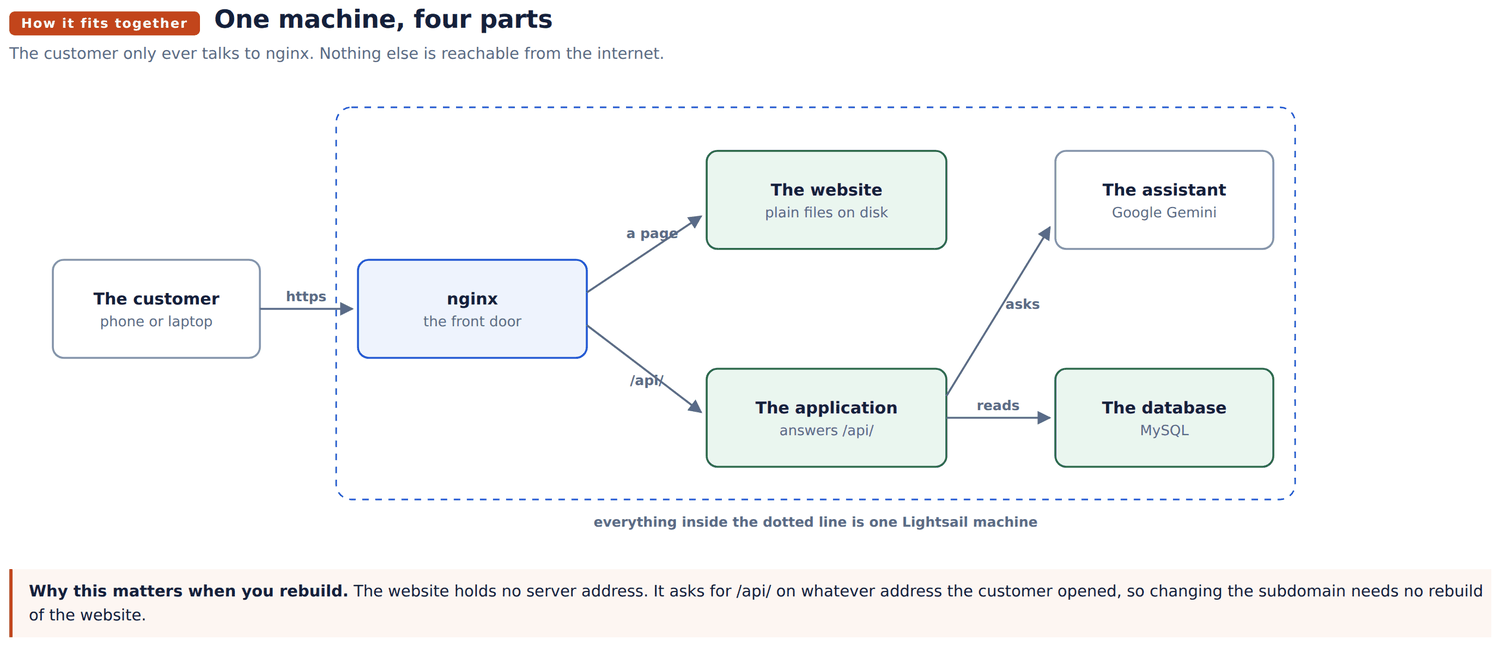

2. Architecture Overview

Four parts, one machine.

The two application folders are in different places. Worth knowing before going looking for one.

The community documents. The plumbing application also answers questions from the association's own PDFs, in the floating panel and in the booking chat. That index is built offline and shipped as JSON inside the application folder, so it needs nothing on the machine and no build step here. How it is routed, scoped and rebuilt, and the one hand maintained list that has to be updated when a new community is added, are in its own reference: https://servicez.smartzees.com/docs/community-rag/

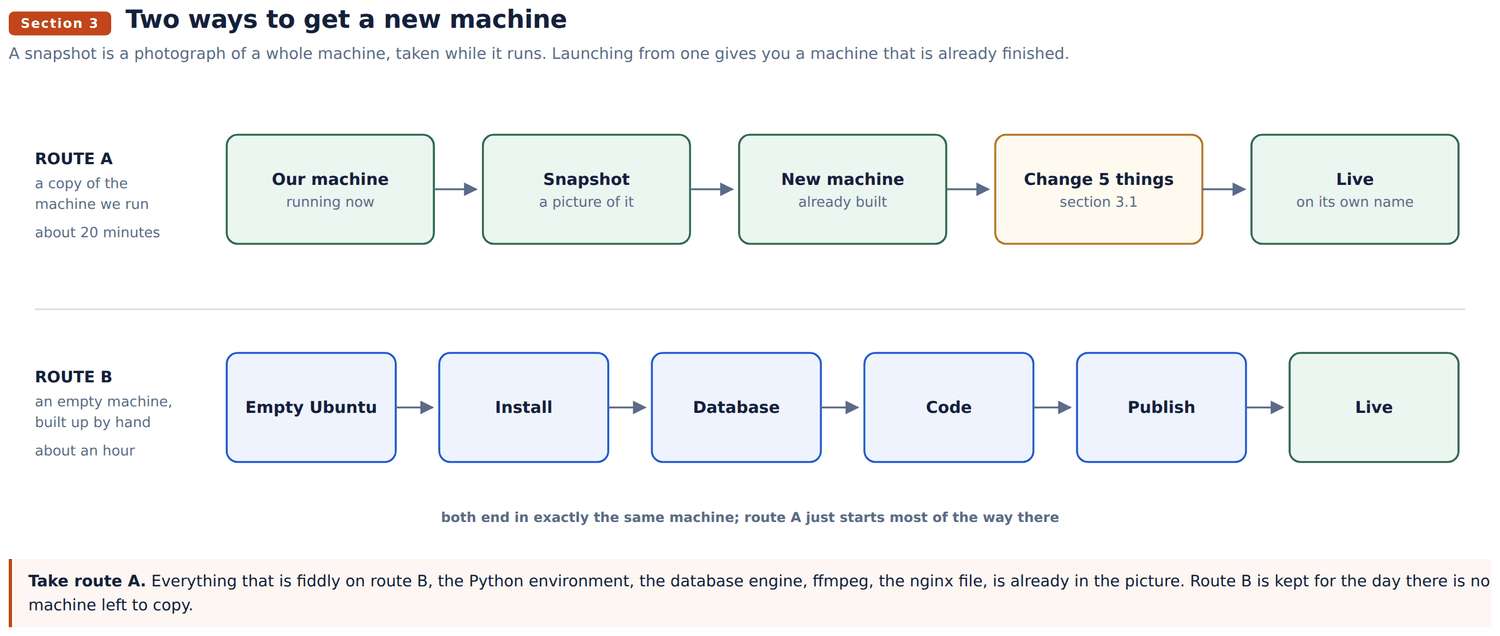

3. SOP: Spinning Off a New Application

Route A copies the machine we already run. Route B builds one from nothing. Route A is the normal way and the rest of this section assumes it. Route B is section 3.2, kept for the day there is no machine left to copy.

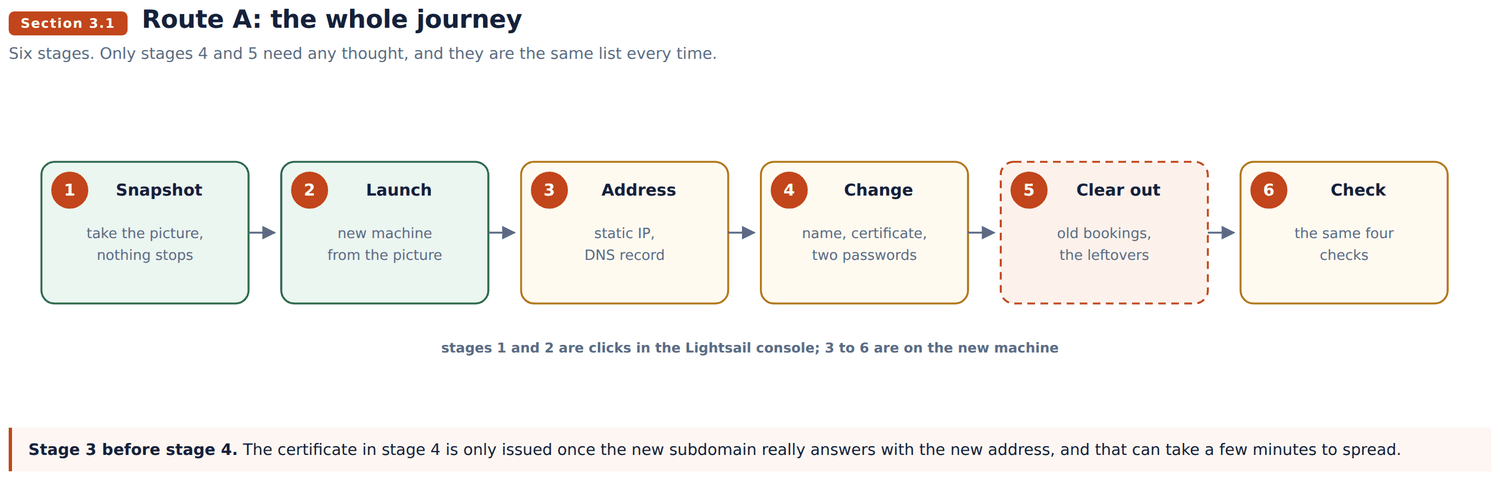

3.1 Route A: from a snapshot of Service Assistant

A snapshot is a photograph of a whole machine, disk and all, taken while it runs. Launch a new machine from one and it starts up already finished: nginx, MySQL, Python, ffmpeg, the code, the settings and the data are all there, and the application is already running.

The work is not building anything. The work is changing the handful of things that still say servicez.smartzees.com.

Stage 1: Take the snapshot

Lightsail console, the Service Assistant instance, the Snapshots tab, Create snapshot. Name it with the date.

Nothing stops and nobody is logged out. It takes a few minutes because the disk is about 31 GB.

You should see: the snapshot appear in the list, state Available. Until it says that, it cannot be launched from.

Stage 2: Launch the new machine

On the snapshot, Create new instance.

Choose a plan with at least as much disk as the original. Lightsail will not let you go smaller, and the same size or larger is the safe answer. The original is a 2 GB machine, so pick 2 GB or more.

Then attach a static IP, or the address changes on restart and the subdomain stops working.

Open the two doors. Networking, add HTTP on TCP 80 and HTTPS on 443. Leave 3306 closed.

You should see: the new instance go Running, and this, straight away:

ssh -i ~/Downloads/your-key.pem ubuntu@NEW.IP.ADDRESS
systemctl is-active plumber nginx mysql

Three times active. The application is already up, on a machine you have done nothing to. That is the whole point of route A.

Stage 3: Give it its own address

In the DNS for fordev.fun, add an A record: name is the new subdomain, value is the new static IP.

dig +short newname.fordev.fun

You should see: the new IP. Nothing, or the old address, means it has not spread yet. Wait. Stage 4 will fail without this.

Stage 4: Change the five things

Everything here is a copy of ours until you change it.

1. The name in the front door.

sudo nano /etc/nginx/sites-available/serviceagent

Change every server_name servicez.smartzees.com; to the new name. There are two, one in each block.

sudo nginx -t && sudo systemctl reload nginx

You should see: syntax is ok and test is successful.

2. The certificate. The one in the picture is ours and has our name on it, so a browser will warn until you get your own.

sudo certbot --nginx -d newname.fordev.fun --agree-tos -m you@example.com --redirect

You should see: "Congratulations". If it fails, the subdomain is not pointing here yet: go back to stage 3.

Then remove ours, which will never renew on this machine:

sudo certbot delete --cert-name servicez.smartzees.com

3 and 4. The two passwords. The database password and the admin token are both ours, and both are in a file another team has seen.

sudo mysql -e "ALTER USER 'aiorder'@'localhost' IDENTIFIED BY 'A_NEW_PASSWORD';"
nano /home/ubuntu/plumber/backend/.env      # DB_PASSWORD and ADMIN_TOKEN
sudo systemctl restart plumber

While that file is open, the same list from route B applies if any of it is yours rather than ours: SMTP_FROM, AI_ORDER_EMAIL, the four STRIPE_ and the four PAYPAL_.

5. The data. The database arrived with our bookings, providers and customers in it. Two choices.

Keep it, if this is a copy of the same business. Or empty the working records and keep the catalogue:

mysql -u aiorder -p plumber_assistant -e "
  SET FOREIGN_KEY_CHECKS=0;
  TRUNCATE appointments; TRUNCATE jobs; TRUNCATE job_lines; TRUNCATE payments;
  TRUNCATE service_requests; TRUNCATE chat_sessions; TRUNCATE cart_items;
  TRUNCATE sessions; TRUNCATE customers;
  SET FOREIGN_KEY_CHECKS=1;"

Take a backup first. mysqldump -u aiorder -p plumber_assistant > before.sql. There is no undo.

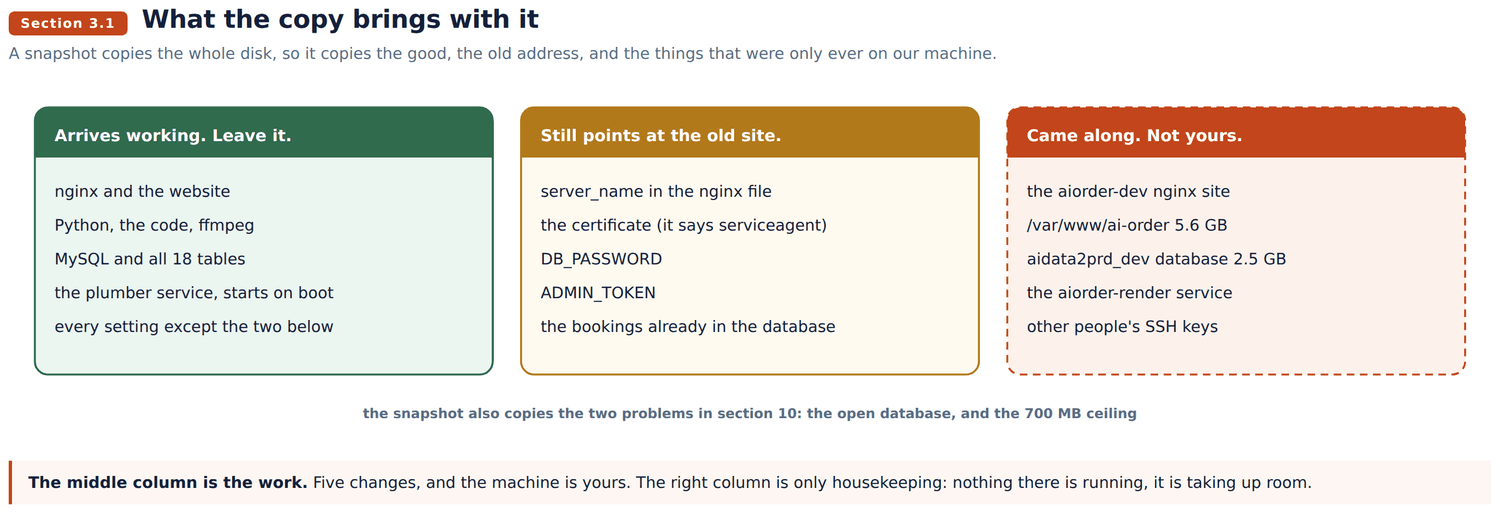

Stage 5: Clear out what came along

The snapshot copied the whole disk, so it copied things that were only ever on our machine. None of it is running on yours. It is about 8 GB of room.

sudo rm -f /etc/nginx/sites-enabled/aiorder-dev
sudo systemctl disable --now aiorder-render
sudo rm -rf /var/www/ai-order
sudo mysql -e "DROP DATABASE aidata2prd_dev;"
sudo nginx -t && sudo systemctl reload nginx

Also check who can log in. Our machine has four keys on it, and they all came with the copy:

nano ~/.ssh/authorized_keys

Leave your own line. Delete the rest.

Stage 6: The same four checks

curl -s -o /dev/null -w "home    %{http_code}\n" https://newname.fordev.fun/
curl -s -o /dev/null -w "health  %{http_code}\n" https://newname.fordev.fun/health
curl -s https://newname.fordev.fun/api/v1/services | head -c 200

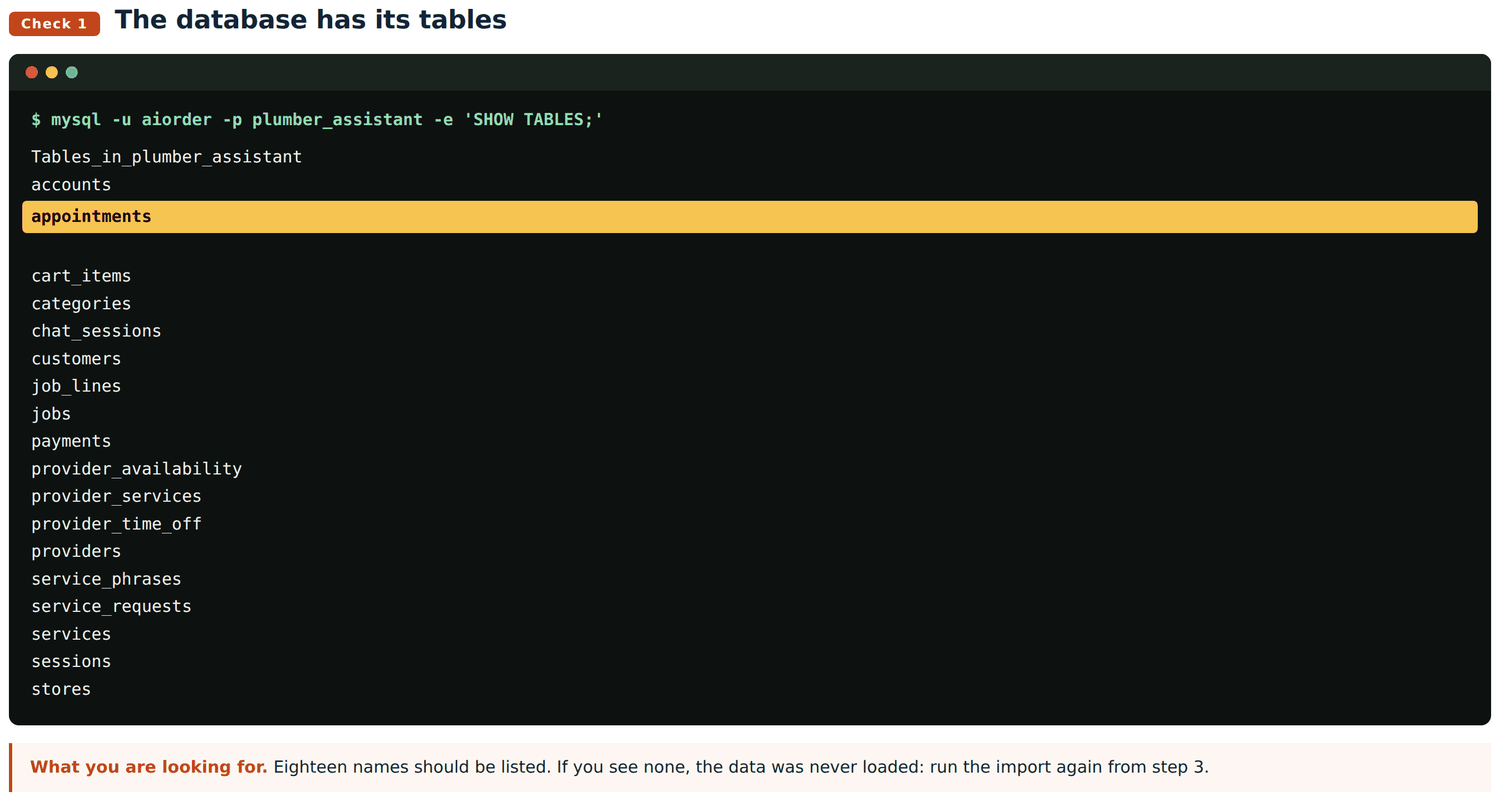

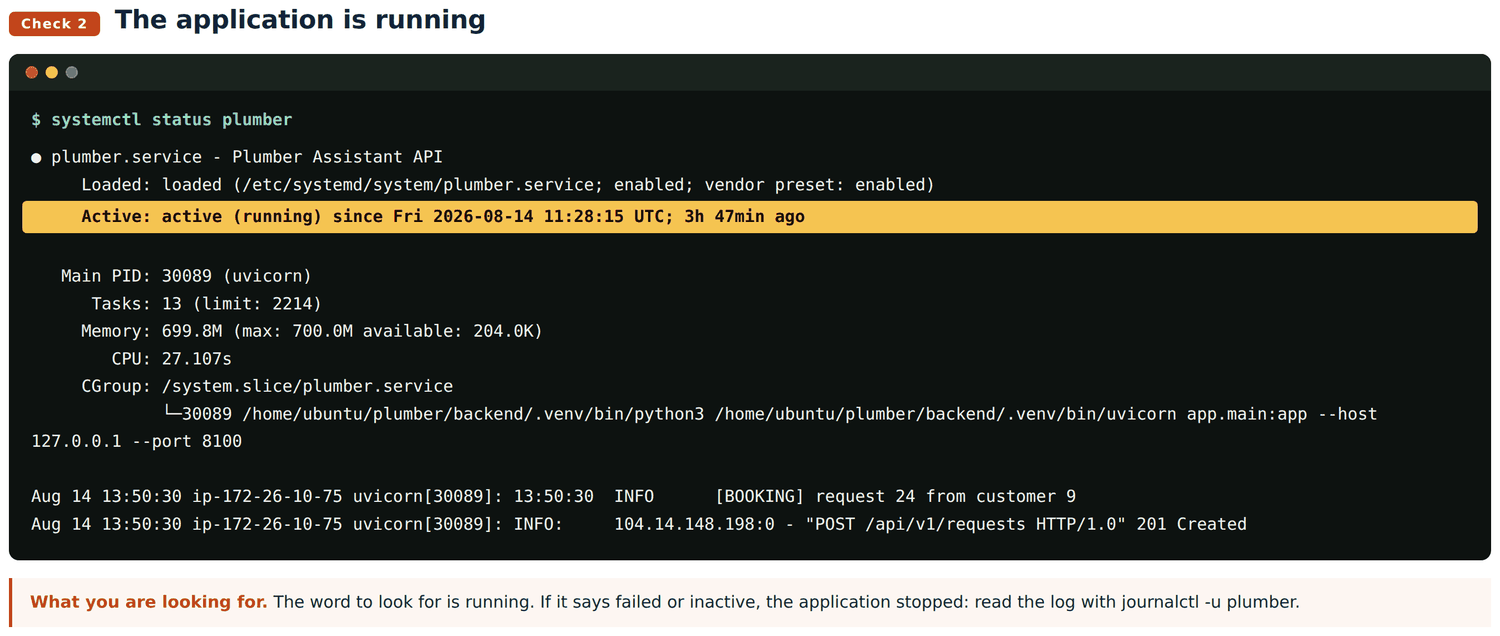

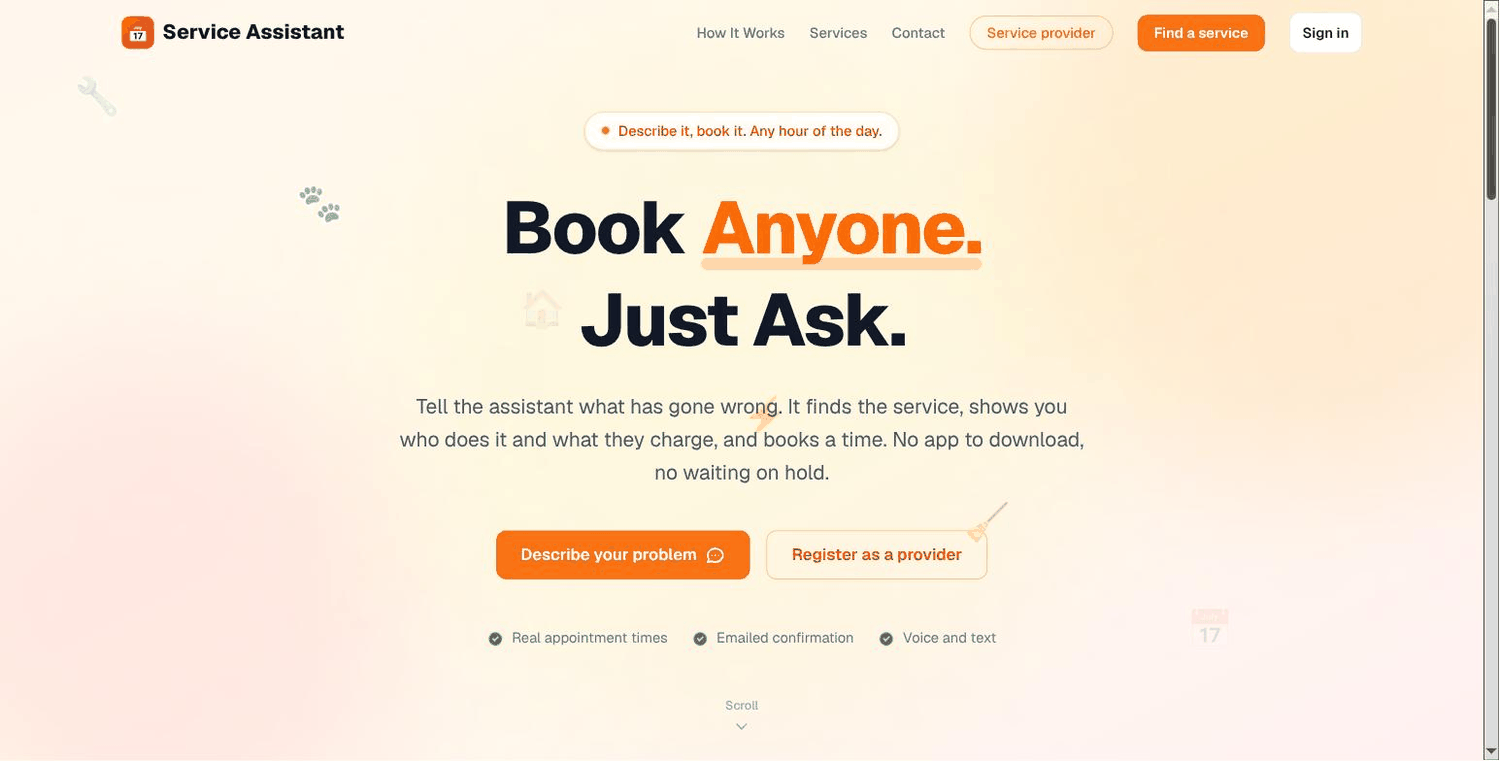

Two 200s and a list of services. Then the four pictures in section 3.2, stage 6, show what each check looks like when it is right.

One thing route A does not fix

The copy inherits both problems in section 10: the database open to the internet, and the 700 MB memory ceiling. Section 10.1 and 10.2 are worth doing on the new machine on day one, while nobody is using it yet.

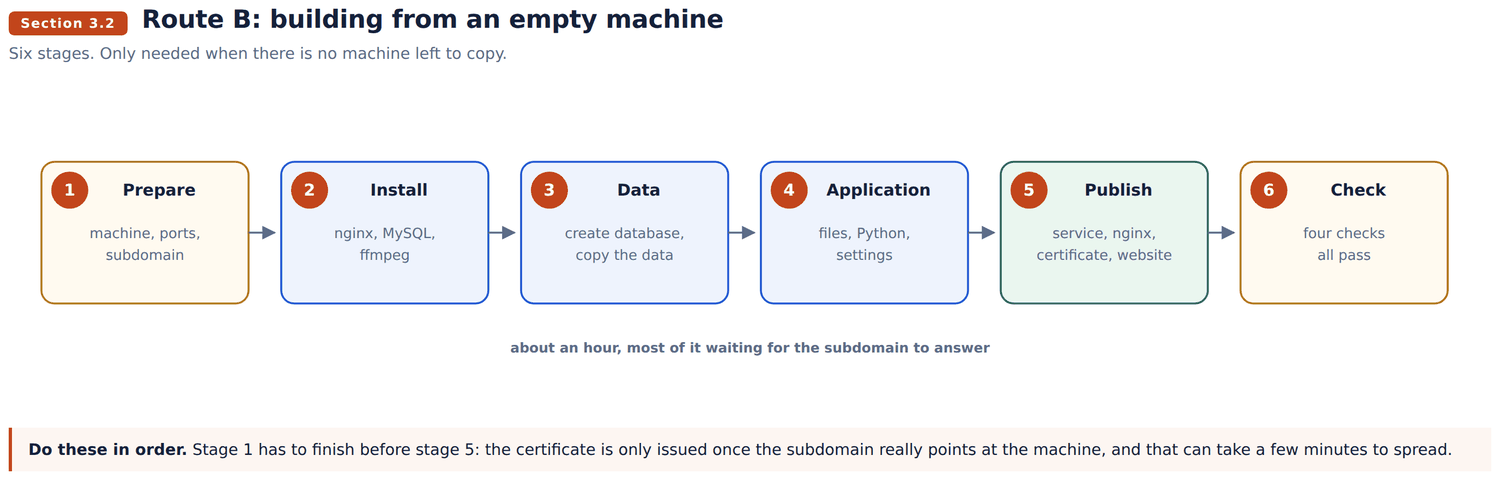

3.2 Route B: from an empty machine

Only needed when there is no machine to copy. Six stages, in order. Allow about an hour.

Stage 1: Prepare

Create the machine. Lightsail console, Create instance, Linux, Ubuntu 22.04 LTS, the 2 GB plan or larger. Then attach a static IP, or the address changes on restart and the subdomain stops working.

Let your key be used. A key file that anyone can read is refused by SSH.

chmod 600 ~/Downloads/your-key.pem
ssh -i ~/Downloads/your-key.pem ubuntu@NEW.IP.ADDRESS

You should see: a prompt ending in ubuntu@ip-...:~$. You are on the machine.

Open the two doors. Lightsail blocks everything except SSH until you say otherwise. Under Networking, add HTTP on TCP 80 and HTTPS on TCP 443.

Leave 3306 closed. That is the database, and it only ever talks to the application sitting beside it on the same machine.

Point the subdomain. In the DNS for fordev.fun, add an A record: name is the subdomain, value is the new static IP.

dig +short yoursubdomain.fordev.fun

You should see: the new IP address. Nothing, or the old address, means it has not spread yet. Wait. Stage 5 will fail without this.

Stage 2: Install

sudo apt update
sudo apt install -y nginx mysql-server ffmpeg git curl
curl -LsSf https://astral.sh/uv/install.sh | sh

You should see: a long list of packages, ending without the word Error.

ffmpeg is not optional. It converts the audio from voice bookings.

Stage 3: Data

Make an empty database and a user for it.

sudo mysql -e "CREATE DATABASE plumber_assistant CHARACTER SET utf8mb4;"
sudo mysql -e "CREATE USER 'aiorder'@'localhost' IDENTIFIED BY 'A_STRONG_PASSWORD';"
sudo mysql -e "GRANT ALL ON plumber_assistant.* TO 'aiorder'@'localhost';"
sudo mysql -e "FLUSH PRIVILEGES;"

'aiorder'@'localhost' means "only from this machine". Writing 'aiorder'@'%' instead means "from anywhere on the internet". Section 10.1 is what happens when you get that wrong.

Copy the data over. On the old machine:

mysqldump -h 127.0.0.1 -u aiorder -p plumber_assistant > plumber.sql

On the new one:

mysql -h 127.0.0.1 -u aiorder -p plumber_assistant < plumber.sql

Stage 4: Application

Bring the code.

git clone git@github.com:jafgithub/ai-service-chat-se-abad.git ~/plumber

The code is not in that repository yet. Until it is, copy the folder off a running machine instead: rsync -az ubuntu@52.25.174.57:/home/ubuntu/plumber/ ~/plumber/. Route A avoids this question entirely.

Give it its own Python.

cd ~/plumber/backend
uv venv .venv --python 3.12
uv pip install --python .venv/bin/python -r requirements.txt

This environment has no pip inside it. Always uv pip install --python .venv/bin/python. Typing .venv/bin/pip gives "no such file", and that is expected, not a fault.

Write the settings.

nano ~/plumber/backend/.env
chmod 600 ~/plumber/backend/.env

Copy the old file, then change these and only these:

Everything else carries over untouched.

Apply the database changes.

for m in migrations/00*.py; do .venv/bin/python "$m"; done

You should see: four short reports. Running this twice is safe, each one checks before it changes anything.

Stage 5: Publish

Teach the machine to start the application.

sudo nano /etc/systemd/system/plumber.service

[Unit]
Description=Service Assistant API
After=network-online.target mysql.service
Wants=network-online.target

[Service]
Type=simple
User=ubuntu
WorkingDirectory=/home/ubuntu/plumber/backend
EnvironmentFile=/home/ubuntu/plumber/backend/.env
ExecStart=/home/ubuntu/plumber/backend/.venv/bin/uvicorn app.main:app --host 127.0.0.1 --port 8100
MemoryMax=700M
Restart=always
RestartSec=3

[Install]
WantedBy=multi-user.target

sudo systemctl daemon-reload
sudo systemctl enable --now plumber

Set up the front door.

sudo nano /etc/nginx/sites-available/serviceagent

server {
    listen 80;
    server_name yoursubdomain.fordev.fun;

    client_max_body_size 20M;
    root /var/www/serviceagent;
    index index.html;

    location /api/ {
        proxy_pass http://127.0.0.1:8100;
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-For $remote_addr;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_read_timeout 180s;
    }
    location = /health { proxy_pass http://127.0.0.1:8100/health; }

    location /_next/static/ { add_header Cache-Control "public, max-age=31536000, immutable"; try_files $uri =404; }
    location / { try_files $uri $uri.html $uri/index.html /index.html; add_header Cache-Control "no-store, must-revalidate"; }
}

sudo mkdir -p /var/www/serviceagent
sudo ln -sf /etc/nginx/sites-available/serviceagent /etc/nginx/sites-enabled/
sudo nginx -t && sudo systemctl reload nginx

You should see: syntax is ok and test is successful. nginx refuses to reload a file it cannot understand, so this is safe to run any time.

proxy_read_timeout 180s is there for a reason: voice bookings run longer than the minute nginx allows by default, and without it they stop halfway.

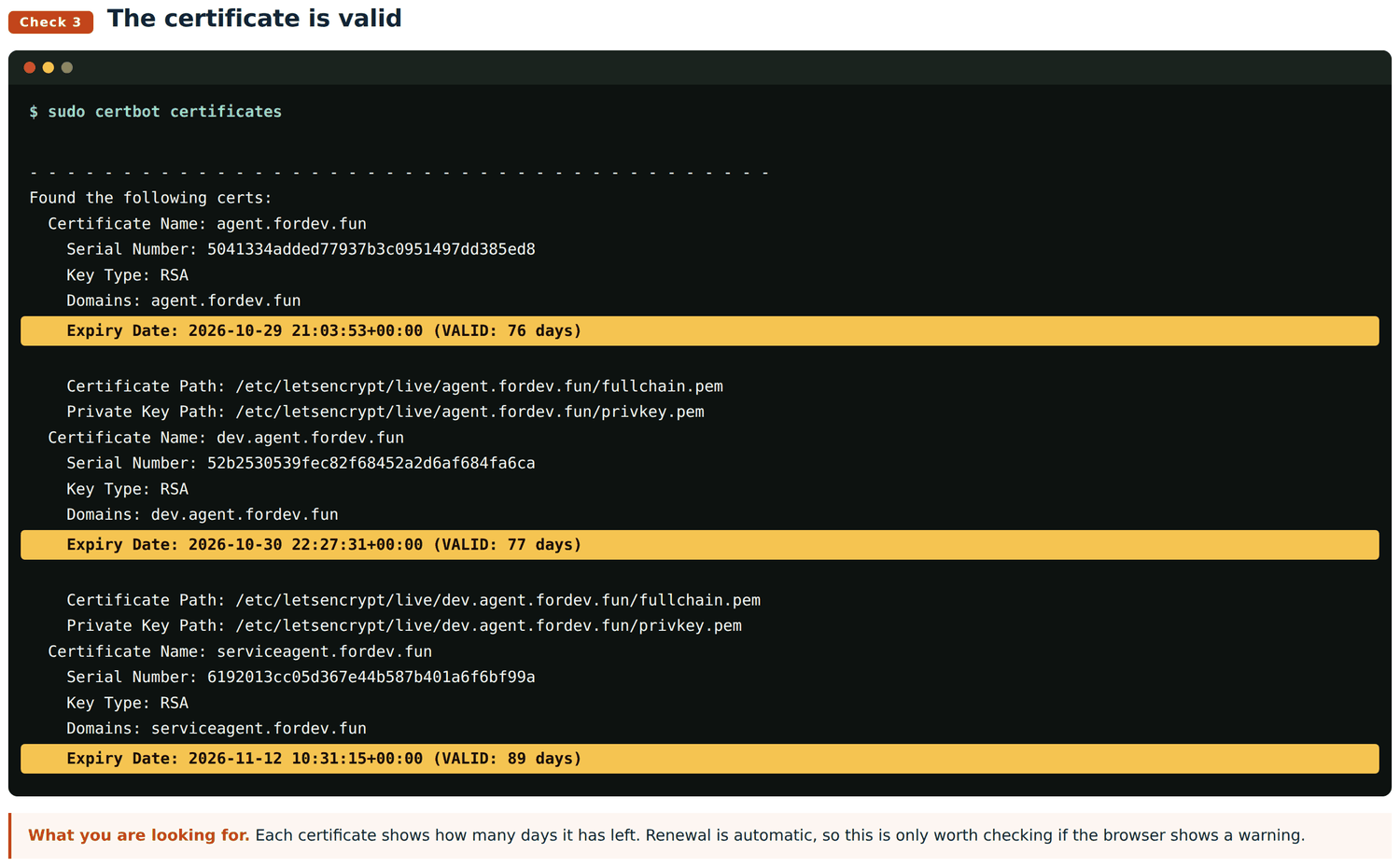

Get the padlock.

sudo apt install -y certbot python3-certbot-nginx
sudo certbot --nginx -d yoursubdomain.fordev.fun --agree-tos -m you@example.com --redirect

You should see: "Congratulations". Certbot edits the nginx file itself and sets up automatic renewal. If it fails, the subdomain is not pointing here yet: go back to stage 1.

One certificate for every subdomain instead. Possible, but it cannot be checked through a web page, so you must add a DNS record by hand:

sudo certbot certonly --manual --preferred-challenges dns \
  -d "*.fordev.fun" -d fordev.fun --agree-tos -m you@example.com

Certbot prints a _acme-challenge record. Add it in the DNS, confirm it answers with dig +short TXT _acme-challenge.fordev.fun, then press enter.

The catch: a certificate made this way does not renew on its own. It has to be redone every 90 days. For one or two subdomains the simple command above is less work and less risk.

Put the website on. Built on your own computer, because the server has no Node installed.

cd frontend
npm install
npm run build:serviceagent
rsync -az --delete out/ ubuntu@NEW.IP:/tmp/fe-stage/
ssh ubuntu@NEW.IP 'sudo rsync -a --delete /tmp/fe-stage/ /var/www/serviceagent/ \
  && sudo chown -R www-data:www-data /var/www/serviceagent/'

Use build:serviceagent, not build. The plain build is made for the old address where the app sat inside a folder, and its pages look in the wrong place on a subdomain.

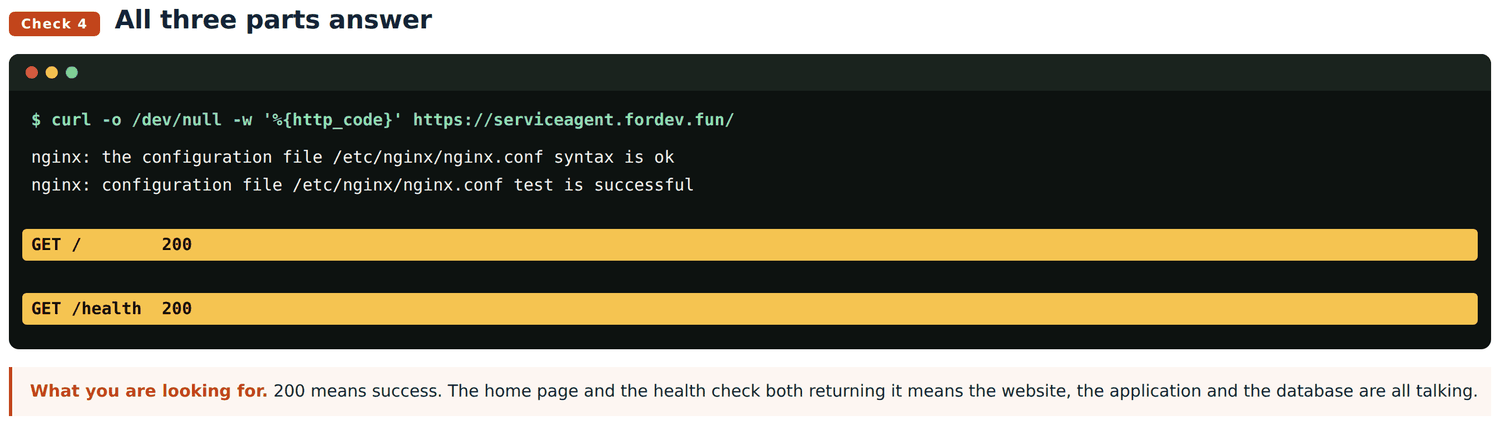

Stage 6: Check

curl -s -o /dev/null -w "home    %{http_code}\n" https://yoursubdomain.fordev.fun/
curl -s -o /dev/null -w "health  %{http_code}\n" https://yoursubdomain.fordev.fun/health
curl -s https://yoursubdomain.fordev.fun/api/v1/services | head -c 200

Two 200s and a list of services means the website, the application and the database are all talking to each other. You are done.

4. Product Application

A conversational grocery shop. A shopper types or speaks, the assistant searches 25,631 products, results fill a basket. When the catalogue has nothing, a paid search looks at other shops.

Search never touches the database. The whole catalogue sits in memory, which is why a search answers in about 200 milliseconds.

Its own settings: the shopping group (SERPAPI_KEY, SHOPPING_PROVIDER, STORE_COMPARISON_TTL_DAYS and four more) and six BROWSE_ settings for an in-app retailer browser that was built and then switched off.

Its database: 26 working tables. items for the catalogue, orders and order_details for trade, external_offers for what outside search found.

5. Plumbing Application

Same shape, different transaction. A customer describes a problem, the assistant matches a service, shows who does it and what they charge, offers real times from each provider's diary, and books one.

18 tables. Four migrations built the new ones:

items became services, gaining duration_minutes and emergency. orders became jobs. appointments is new.

Its own settings: seven BOOKING_ (working day 8 to 17, no weekends, hourly slots, 3 hours notice, 14 days ahead, 10 minute hold), PROVIDER_RANKING, SESSION_DAYS, and the Calendly group.

How booking works. A slot is held for ten minutes while the customer confirms, so two people cannot take the same time. Payment is cash, card or PayPal, and only a signed webhook marks a booking paid.

6. Product to Plumbing Conversion

Reused: the assistant, speech in and out, the in-memory search, the design system, sign-in, the email sender, payments, and the whole deployment shape.

Changed: the machinery stayed, the vocabulary moved from products to services. catalog_index.py still holds every row in memory and still ranks the same way; it just reads a different table.

Added: the booking world, which a shop has no equivalent for: providers, diaries, appointments with holds, accounts for two kinds of user.

Removed: everything that assumed goods rather than time. Outside search, store comparison, the retailer browser, orders, and the whole shop interface.

Routes went from 3 to 15.

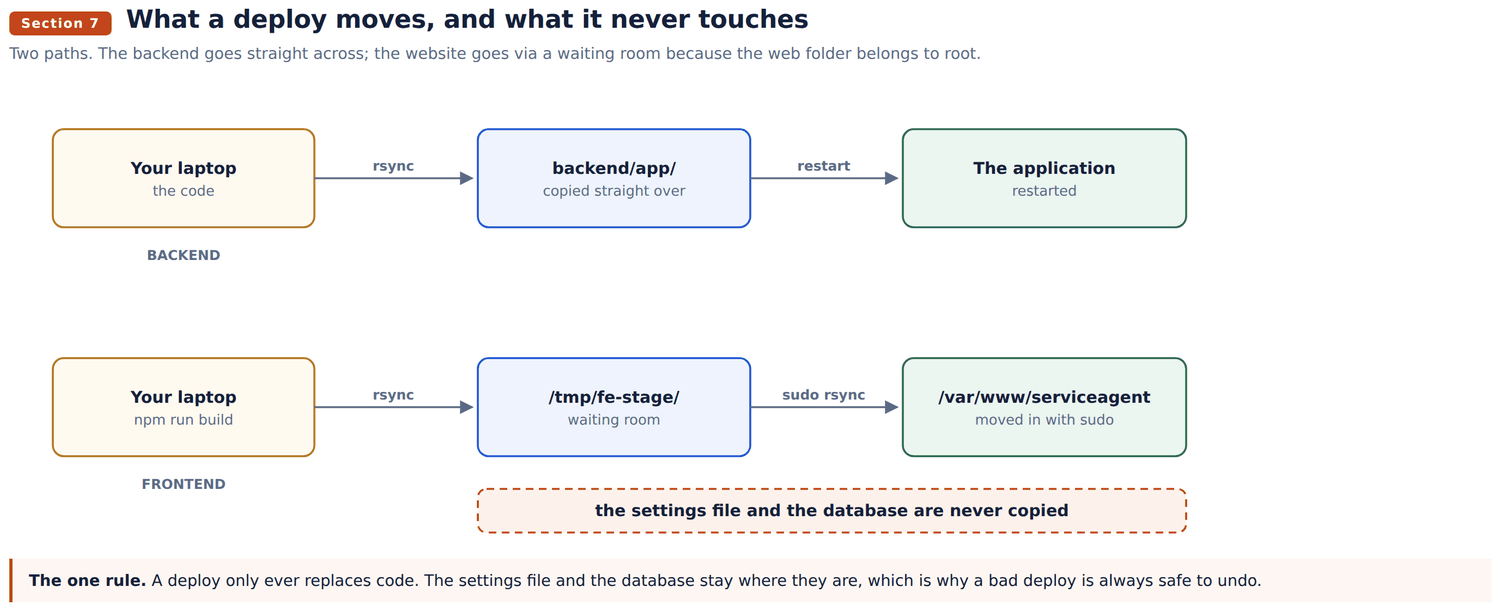

7. Deployment & Rebuild Procedure

There are two paths, and they are different because the website folder belongs to root while the application folder belongs to you.

The application

rsync -az --delete backend/app/ ubuntu@HOST:/home/ubuntu/plumber/backend/app/
ssh ubuntu@HOST 'sudo systemctl restart plumber'

You should see: nothing from the first command, which means it worked. Then check with systemctl status plumber.

The website

Three moves, not one: build on your computer, put the files in a waiting room on the server, then move them in with sudo.

cd frontend && npm run build:serviceagent
rsync -az --delete out/ ubuntu@HOST:/tmp/fe-stage/
ssh ubuntu@HOST 'sudo rsync -a --delete /tmp/fe-stage/ /var/www/serviceagent/ \
  && sudo chown -R www-data:www-data /var/www/serviceagent/'

The waiting room exists because you cannot write into /var/www directly. The chown at the end hands the files to the web server, or nginx cannot read what you just delivered.

Two things a deploy never touches

The settings file and the database. That is deliberate, and it is what makes section 11 possible: because a deploy only ever replaces code, undoing one is always safe.

Documents

These pages live in /var/www/serviceagent-docs/, deliberately outside the website folder. The website deploy above uses --delete, which empties whatever it is copying into. Documents kept inside it would be erased on the next deploy.

8. Verification / Smoke Tests

systemctl is-active plumber
curl -s -o /dev/null -w "%{http_code}\n" https://servicez.smartzees.com/health

Then five things by hand, because these are the paths that fail quietly:

1. Describe a problem in the chat. Services come back with prices.
2. Pick one. Real times appear.
3. Book it. The confirmation email arrives.
4. Sign in as a provider. The appointment is on the diary.
5. Speak a request. The reply is spoken back.

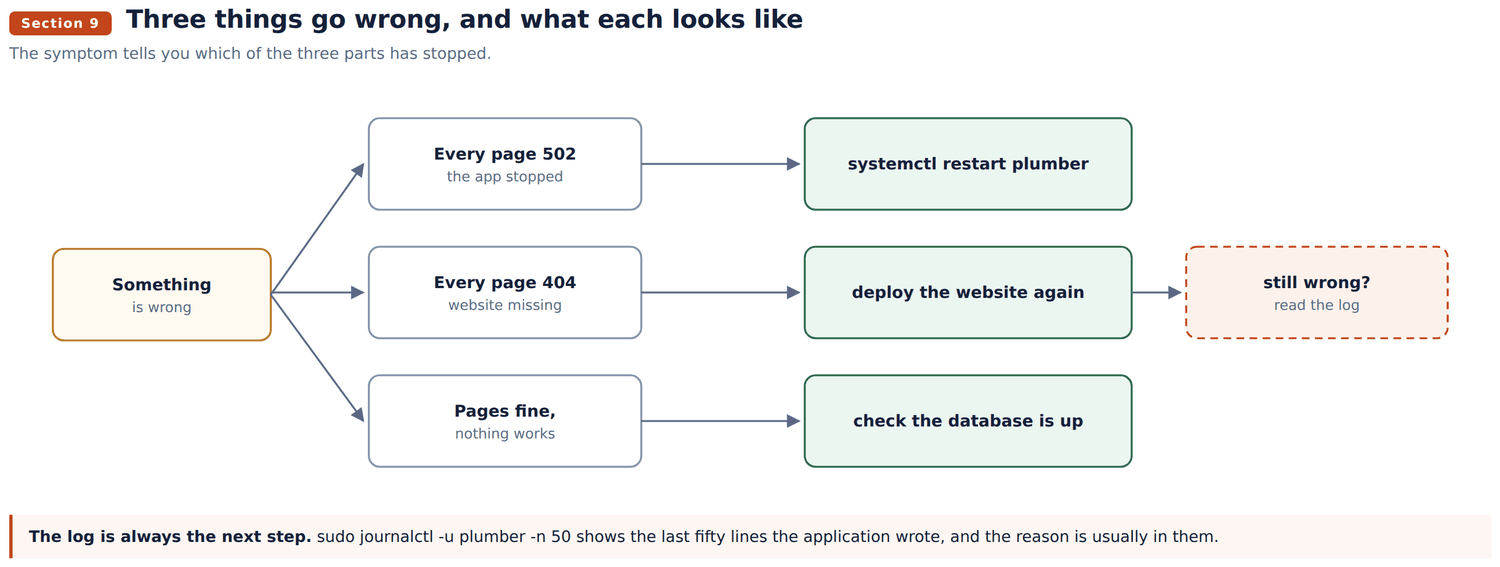

9. Everyday Operations

Two more symptoms worth knowing: a certificate warning means the name in nginx and the name on the certificate disagree, and voice bookings cutting off means proxy_read_timeout is missing from the nginx file.

10. Known Issues & Security Notes

Both of these travel in a snapshot. A machine launched by route A arrives with them, so fix them there too.

10.1 The database is open to the internet

MySQL is listening on every network connection, port 3306 is reachable from anywhere, and the aiorder user is allowed in from any address. Confirmed by connecting from outside the machine. Anyone who guesses the password reaches the customer and booking records.

sudo nano /etc/mysql/mysql.conf.d/mysqld.cnf     # bind-address = 127.0.0.1
sudo mysql -e "DROP USER 'aiorder'@'%';"
sudo systemctl restart mysql

Then remove the 3306 rule in Lightsail. Nothing breaks: the application connects over localhost. Stage 3 sets a new machine up correctly.

10.2 The application is at its memory ceiling

It is using 699.8 MB of the 700 MB it is allowed, on a machine with 1 GB in total. It will be stopped mid request sooner or later. Either raise MemoryMax and move to a 2 GB machine, or keep the limit and accept the restarts.

Also outstanding

• Stripe and PayPal webhook addresses are not registered, so a real payment

cannot confirm itself yet.

• There is no automatic backup. The mysqldump command is the whole of it.

11. Rollback / Recovery

A bad deploy. The code is in git and the server keeps no state of its own, so put the old code back and restart:

git checkout <previous-commit> -- backend/app
rsync -az --delete backend/app/ ubuntu@HOST:/home/ubuntu/plumber/backend/app/
ssh ubuntu@HOST 'sudo systemctl restart plumber'

For the website, rebuild from the previous commit and deploy again. It is only files, so there is nothing else to undo.

A bad database change.

mysql -h 127.0.0.1 -u aiorder -p plumber_assistant < backup.sql

Take the backup first. There is no automatic one, so the only copy is the one you made by hand before the change.

The machine is lost. Launch a new one from the most recent snapshot, section 3.1. It comes back with the database and the settings file as they were on the day the snapshot was taken, which is the strongest reason to take one on a schedule. Everything after that day has to come from a mysqldump.

Section 3.2 is the recovery procedure only if there is no snapshot either.

12. Appendix

Database, plumbing, 18 tables. Bookings: service_requests, jobs, appointments, job_lines, payments. Providers: providers, provider_services, provider_availability, provider_time_off. Catalogue: services, service_phrases, categories, stores. People: accounts, customers, sessions, chat_sessions, cart_items. Total 2.2 MB.

services still carries veg, organic and stock from the shop it was built from. Unused. The live ones are price, duration_minutes, emergency.

Settings, 70 in all, in /home/ubuntu/plumber/backend/.env, permissions 600: application, database, assistant, audio, email, access, payments, booking, diary.

Connecting to the database from your own computer. Over a tunnel, not across the open internet:

ssh -i your-key.pem -L 3307:127.0.0.1:3306 ubuntu@52.25.174.57
mysql -h 127.0.0.1 -P 3307 -u aiorder -p plumber_assistant

The password is on the DB_PASSWORD line of the settings file.

Git. Thirteen commits on master, from 25cc36b (booking against a real diary) through the five build phases to 69240eb (this document).
